4th year capstone project which was completed in March 2020. Our team achieved an implementation of self-mixing interferometry which was able to make sub-micron measurments with ~$200 dollars in off-the shelf components. My tasks consisted of optic design and component selection as well as the majority of the prototyping efforts. Our aim was to develop this into a commercial system and we won the award for best overall technical quality for our design. The research paper, including open-source code and PCB layouts from the project.

Signal has been acquired with the first prototype!

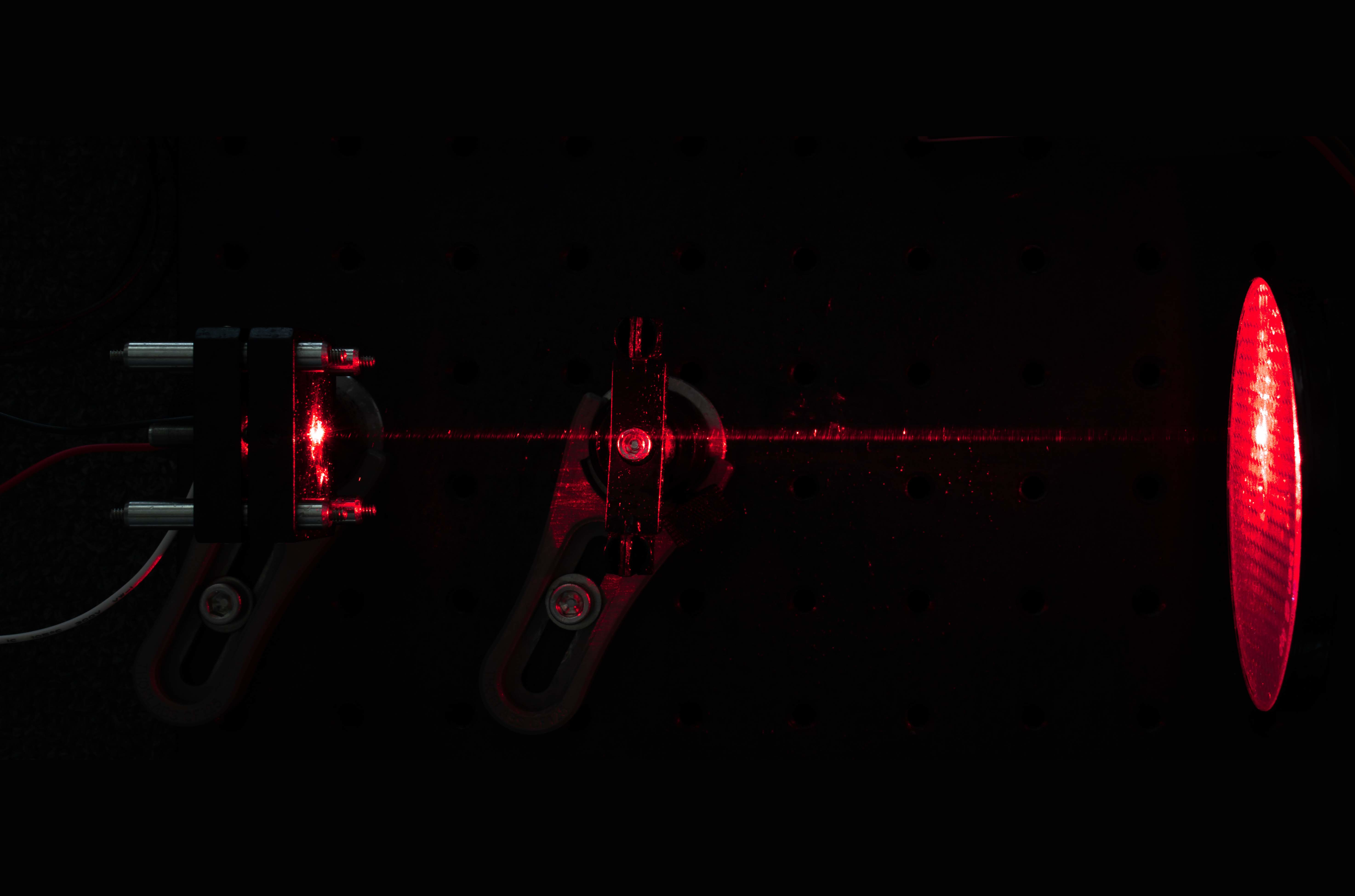

We have a setup that is capable of producing a signal with a resolution in excess of 50nm! I was responsible for selecting all the optical components to collimate and control the laser beam as well as desiging a low-noise laser driver circuit.

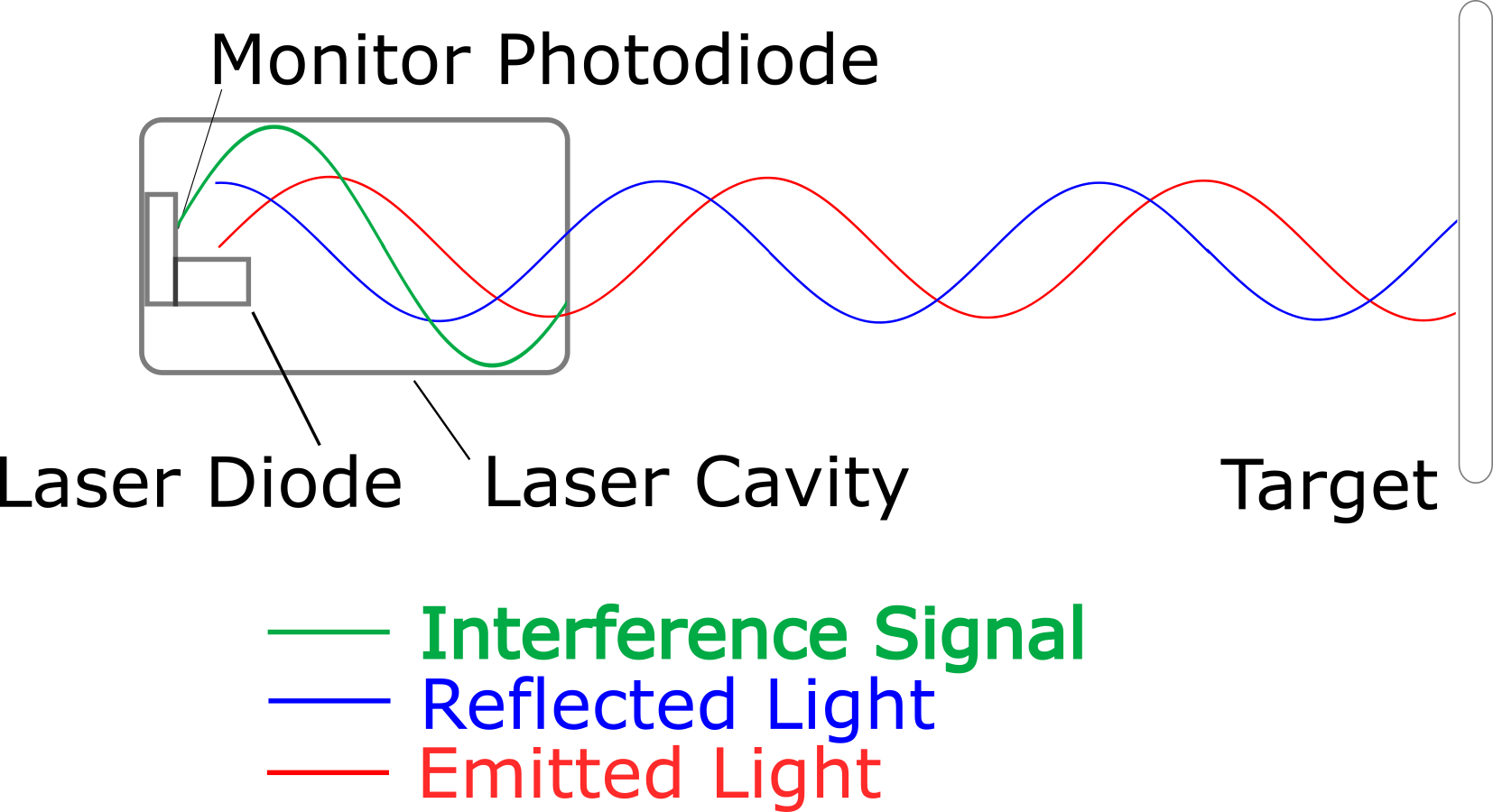

The mechanism of operation depends on induced mode-hopping within the compound cavity formed by the external retroreflector which imparts a frequency and amplitude modulation inside the diode.

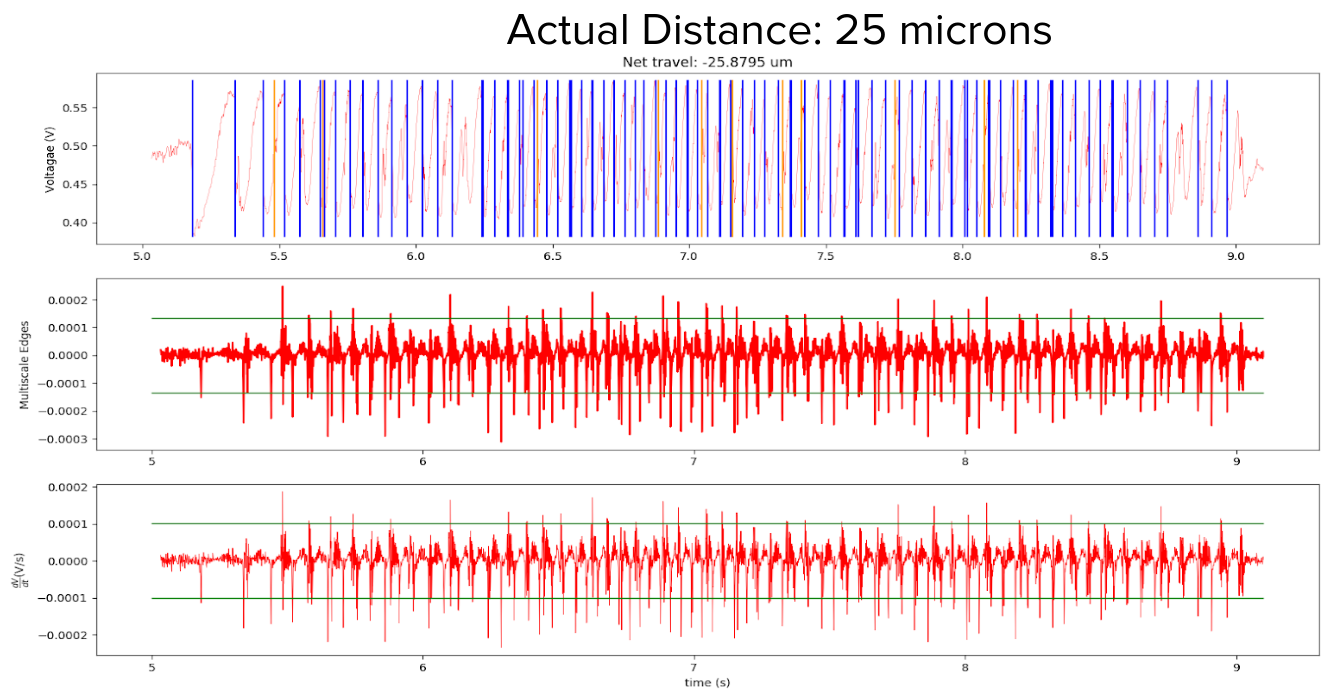

We have started calibration for thermal and pressure variations in the environment using a precision piezo stage as our “ground truth” reference.

Applications for this technology include:

1. Precision Motion Control
2. Vibration Measurement
3. Surface Roughness Measurment
4. Profilometry
5. Non-contact Velocimetry
6. Medical applications such as vibrocardiography

At the start of the project a proof of concept was required to ensure that we were able to see signal at all. So one was hasitly constructed using a scope and a simple linear stage with a retroreflector.

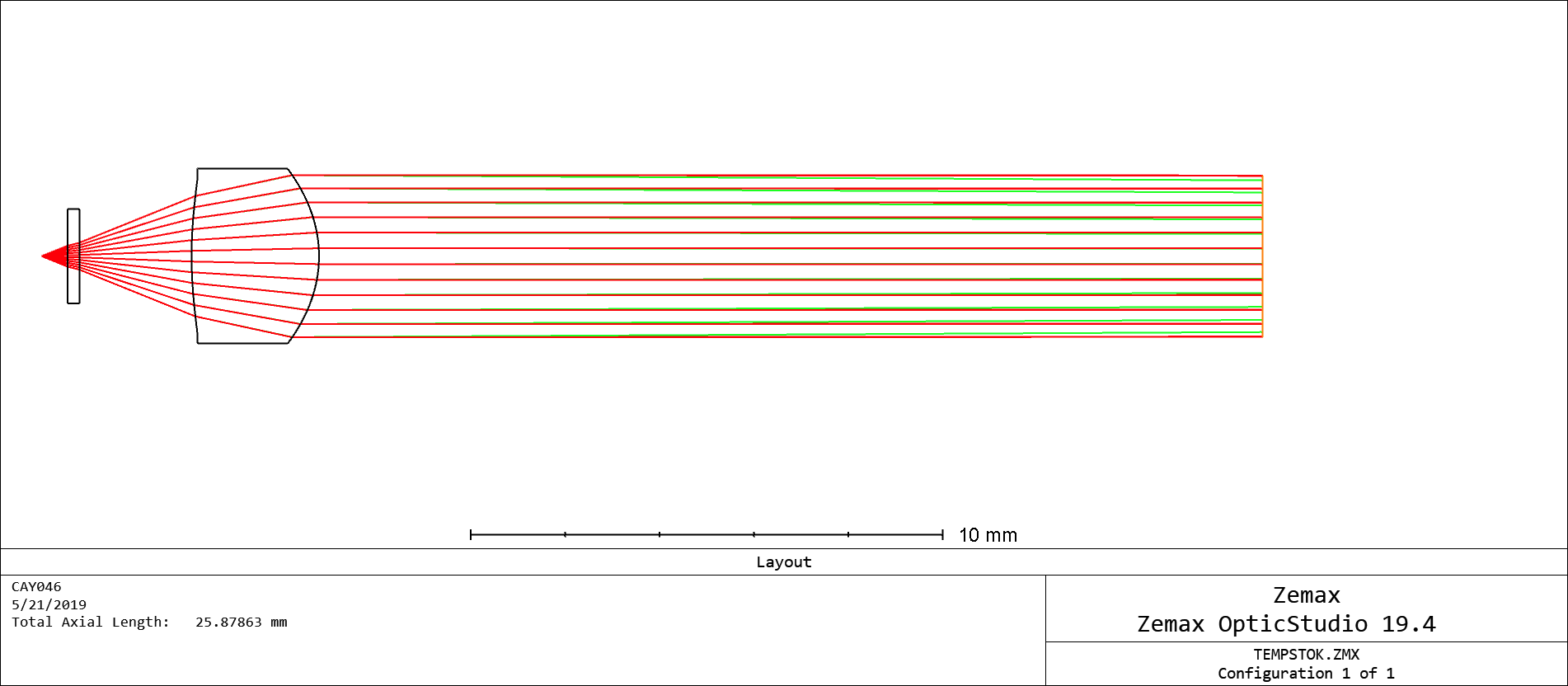

Simulation in Zemax showing the collimation performance for the selected lens.
